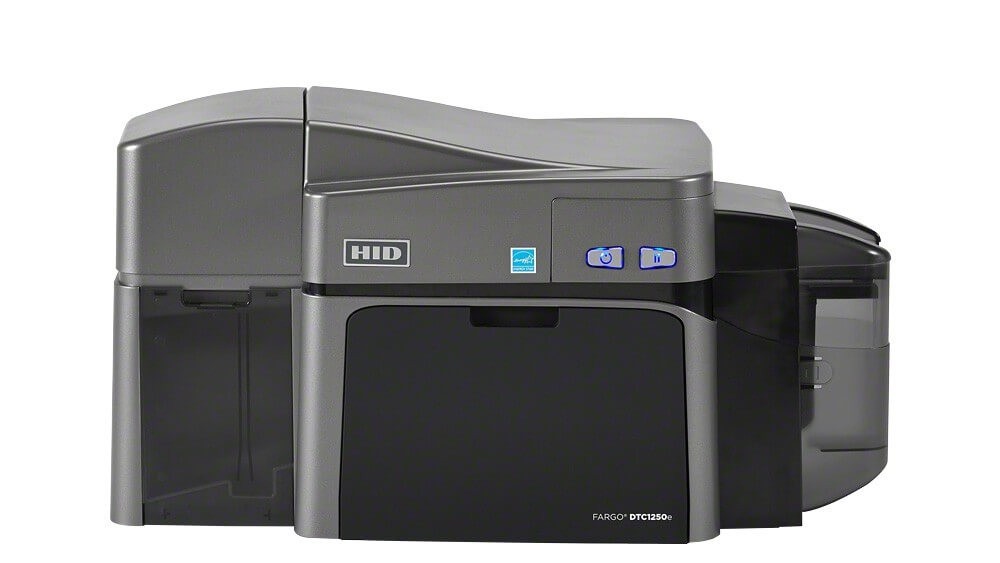

Fargo DTC1250e ID Card Printer Specifications

Most popular configurations:

50000 - Fargo DTC1250e with USB connectivity
50010 - Fargo DTC1250e with USB connectivity and Magnetic Stripe Encoding
50020 - Fargo DTC1250e with USB & Ethernet Connectivity
50030 - Fargo DTC1250e with USB & Ethernet connectivity and Magnetic Stripe Encoding
50100 - Dual-sided Fargo DTC1250e with USB connectivity
50110 - Dual-sided Fargo DTC1250e with USB connectivity and Magnetic Stripe Encoding
50120 - Dual-sided Fargo DTC12503 with USB & Ethernet Connectivity
50130 - Dual-sided Fargo DTC1250e with USB & Ethernet connectivity and Magnetic Stripe Encoding

Print Method: Dye-sublimation / resin thermal transfer
Resolution: 300 dpi (11.8 dots/mm) continuous tone
Colors: Up to 16.7 million / 256 shades per pixel
Print Ribbon Options: Options include easy-to-use ribbon with disposable ribbon cartridge (EZ) and more economical and ecofriendly refill ribbon Contact an ID Expert at 877-868-0012 for more information on the Eco ribbons for cartridge (ECO).
Rewrite technology - No ribbon is required, just rewritable pvc cards
Print Speed: 6 seconds per card (K); 8 seconds per card (KO); 16 seconds per card (YMCKO); 24 seconds per card (YMCKOK)
Accepted Standard Card Sizes: CR-80 (3.375 L x 2.125W / 85.6 L x 54 mm W); CR-79 adhesive back (3.313 L x 2.063W / 84.1 L x 52.4 mm W)
Print Area: CR-80 edge-to-edge (3.36 L x 2.11W / 85.3 L x 53.7 mm W); CR-79 (3.3 L x 2.04W / 83.8 L x 51.8 mm W)
Accepted Card Thickness: .009 - .040 / 9 mil - 40 mil / .229 mm - 1.016 mm
Accepted Card Types: PVC or polyester cards with polished PVC finish; monochrome resin required for100% polyester cards; optical memory cards with PVC finish; rewrite
Input Hopper Card Capacity: 100 cards (.030. / .762 mm)
Output Hopper Card Capacity: Up to 30 cards (.030. / .762 mm)
Card Cleaning: Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change
Memory: 32 MB RAM
Software Drivers: Windows XP / Vista (32 bit & 64 bit) / Server 2003 & 2008 / Windows 7 / Windows 8 (32 bit & 64 bit)/ MAC OS X 10.5/10.6/10.7/10.8 / Linux
Interface: USB 2.0, optional Ethernet with internal print server
Operating Temperature: 65 to 80 F / 18 to 27 C
Humidity: 2080% non-condensing
Dimensions:
Single-sided printer: 8.8.H x 13.7.W x 7.9.D / 224 mm H x 348 mm W x 201 mm D
Dual-sided printer: 9.8.H x 18.7.W x 9.2.D / 249 mm H x 475 mm W x 234 mm D
Weight: Single-sided: 7.5 lbs / 3.4 Kg; Dual-sided: 10 lbs / 4.54 Kg
Agency Listings - Safety: UL 60950-2, CSA C22.2 (60950-07), and CE; EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Supply Voltage: 100-240Vac, 50-60Hz, 1.6 Amps max
Supply Frequency: 50 Hz / 60 Hz
Warranty: Printer three years; printhead three years, unlimited pass with UltraCard
Encoding Options Contact an ID Expert for more information on DTC1250e encoding
Supported smart card and magnetic stripe technologies: 125 kHz (HID Prox) reader; 13.56 MHz (iCLASS Standard / SE / SR / Seos, MIFARE Classic, MIFARE Plus, MIFARE DESFire, MIFARE DESFire EV1, ISO 14443 A/B, ISO 15693) read/write encoder; contact smart card encoder reads from and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards (T=0, T=1) as well as synchronous cards; ISO magnetic stripe encoding, dual high- and low-coercivity, tracks 1, 2 and 3
Supported Access Control:
Credential Programming iCLASS Standard/SE/SR/Seos, MIFARE Classic, MIFARE DESFire EV1, HID Prox
Options:
Single wire Ethernet and USB 2.0 interface for inline printing and encoding (note: single wire Ethernet encoding is only available for iCLASS , MIFARE, and contact smart card encoding) - Ethernet-enabled printer supports wireless accessory; dual-sided printing module; smart card encoding modules (contact/contactless); magnetic stripe encoding module; printer cleaning kit; ethernet with internal print server; secure proprietary consumables system
Display: Color changing status buttons
